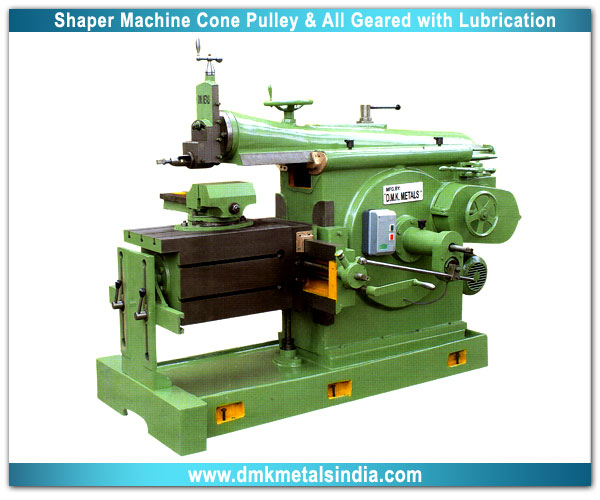

>> Shaper Machine Cone Pulley


Shaper Machine



TECHNICAL DATA

MODEL

RP 12 RP 18 RP 24 RP 30 RP 36 RP 42



mm mm mm mm mm mm

Length of the stroke

340 457 610 762 914 1066

Length of ram without tool slide

620 1016 1270 1524 1600 1900

Ram bearing in column

495 686 826 902 1065 1100

Ram bearing in width

195 241 298 305 305 370

Tool slide traverse

102 102 152 152 175 200

Length of cross slide

540 749 895 1016 1115 1340

Width of cross slide

185 248 298 298 330 355

Horizontal traverse of the table

370 457 559 660 750 1000

Vertical traverse of the table

245 279 318 330 445 495

Top clamping surface of the universal table

220x295 279x394 356x445 368x546 445x905 580x1010

Top clamping surface  of the fixed table

220x295 279x406 356x546 368x546 445x905 580x1010

Range of speeds

4 4 4 4 4 4

Max. distance from table to ram

290 356 381 406 540 580

Min. distance from table to ram

38 38 51 76 80 80

Tool holder size

16x16 19x25 25x32 25x38 32x32 36x36

Size of the base- plate

925x1425 521x1435 1676x635 1829x635 1820x650 2300x700

Overall size of the machine

1125x775x
1075
914x1524x
1829
2134x1600x
1067
2235x1727x
1168
2500x1400x
1475
2500x1650x
1525

Swivel vice-width of jaws

150 203 229 229 229 300

Swivel opening of jaws

125 152 203 229 229 300

H.P. required

1.5 H.P. 2 H.P. 3 H.P. 5 H.P. 5 H.P. 7.5 H.P.
Note: Specifications are subject to change without prior notice.



STANDARD ACCESSORIES

Standard accessories : Swivelling Vice, Allen key set, V-  belt, Crank handle, Spanner set, Screw driver, Oil can, Motor pulley, Tool box.

Extra accessories : Electric motor & starter, Key way cutting attachment, Automatic tool lifting device, Automatic feed to the tool slide, Automatic lubricating pump, Rapid feed system with control panel





TECHNICAL FEATURES

Duly seasoned alloyed heavy- duty castings
Sturdy construction to ensure vibration free working
Ram alignment with taper jib strip
Extensive lubrication arrangements
Alloy steel shafts
All alignments maintained as per geometric alignment test . IS 2310 -1989
Universal/fixed table with variable automatic feeds on horizontal traverse
Expanding ring type clutch drive in all geared machines to eliminate slippage
Graduated tool slide swivelling 90 degrees eitherway
Interchangeability of parts ensured through standarisation and quality control
Accuracy and performance guaranteed
