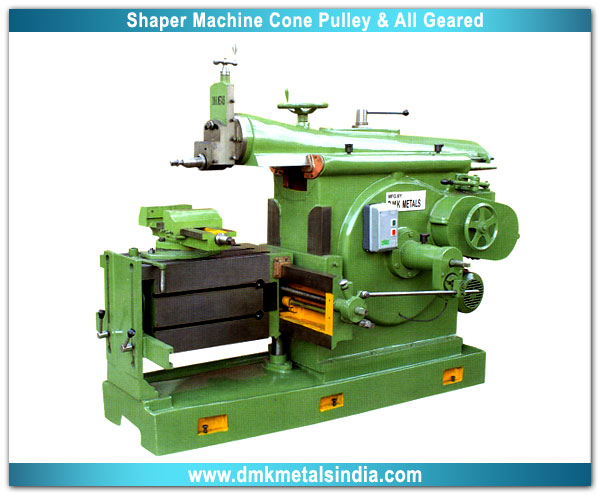

	>> Shaper Machine Cone Pulley

TECHNICAL DATA
MODEL	RP 12	RP 18	RP 24	RP 30	RP 36	RP 42
	mm	mm	mm	mm	mm	mm
Length of the stroke	340	457	610	762	914	1066
Length of ram without tool slide	620	1016	1270	1524	1600	1900
Ram bearing in column	495	686	826	902	1065	1100
Ram bearing in width	195	241	298	305	305	370
Tool slide traverse	102	102	152	152	175	200
Length of cross slide	540	749	895	1016	1115	1340
Width of cross slide	185	248	298	298	330	355
Horizontal traverse of the table	370	457	559	660	750	1000
Vertical traverse of the table	245	279	318	330	445	495
Top clamping surface of the universal table	220x295	279x394	356x445	368x546	445x905	580x1010
Top clamping surface of the fixed table	220x295	279x406	356x546	368x546	445x905	580x1010
Range of speeds	4	4	4	4	4	4
Max. distance from table to ram	290	356	381	406	540	580
Min. distance from table to ram	38	38	51	76	80	80
Tool holder size	16x16	19x25	25x32	25x38	32x32	36x36
Size of the base- plate	925x1425	521x1435	1676x635	1829x635	1820x650	2300x700
Overall size of the machine	1125x775x 1075	914x1524x 1829	2134x1600x 1067	2235x1727x 1168	2500x1400x 1475	2500x1650x 1525
Swivel vice-width of jaws	150	203	229	229	229	300
Swivel opening of jaws	125	152	203	229	229	300
H.P. required	1.5 H.P.	2 H.P.	3 H.P.	5 H.P.	5 H.P.	7.5 H.P.
Note: Specifications are subject to change without prior notice.

STANDARD ACCESSORIES

Standard accessories : Swivelling Vice, Allen key set, V- belt, Crank handle, Spanner set, Screw driver, Oil can, Motor pulley, Tool box.

Extra accessories : Electric motor & starter, Key way cutting attachment, Automatic tool lifting device, Automatic feed to the tool slide, Automatic lubricating pump, Rapid feed system with control panel

TECHNICAL FEATURES

Duly seasoned alloyed heavy- duty castings
Sturdy construction to ensure vibration free working
Ram alignment with taper jib strip
Extensive lubrication arrangements
Alloy steel shafts
All alignments maintained as per geometric alignment test . IS 2310 -1989
Universal/fixed table with variable automatic feeds on horizontal traverse
Expanding ring type clutch drive in all geared machines to eliminate slippage
Graduated tool slide swivelling 90 degrees eitherway
Interchangeability of parts ensured through standarisation and quality control
Accuracy and performance guaranteed
